MIMESIS 37S NEXTGEN
Preamplifier
STEREO PREAMPLIFICATION

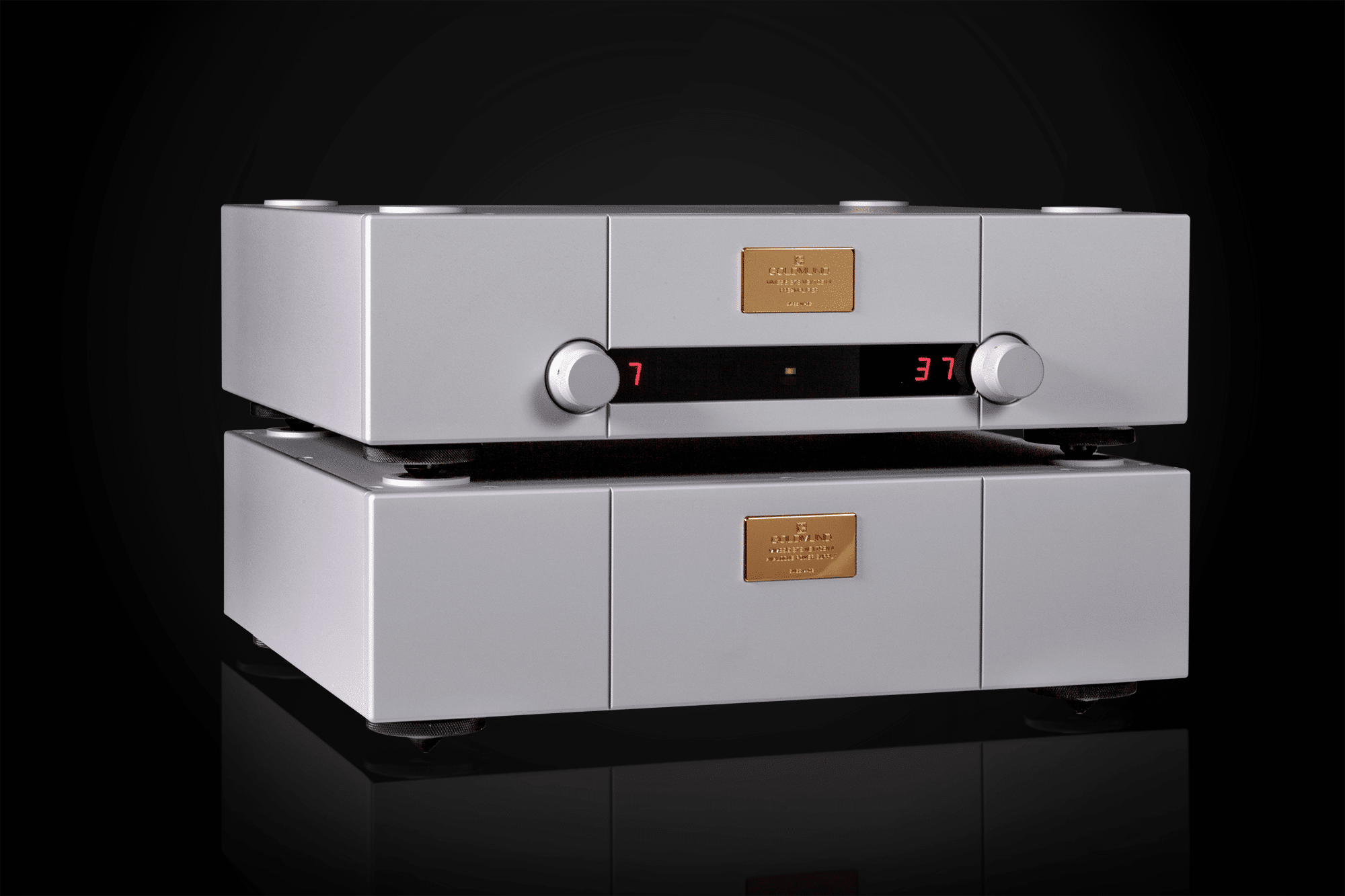

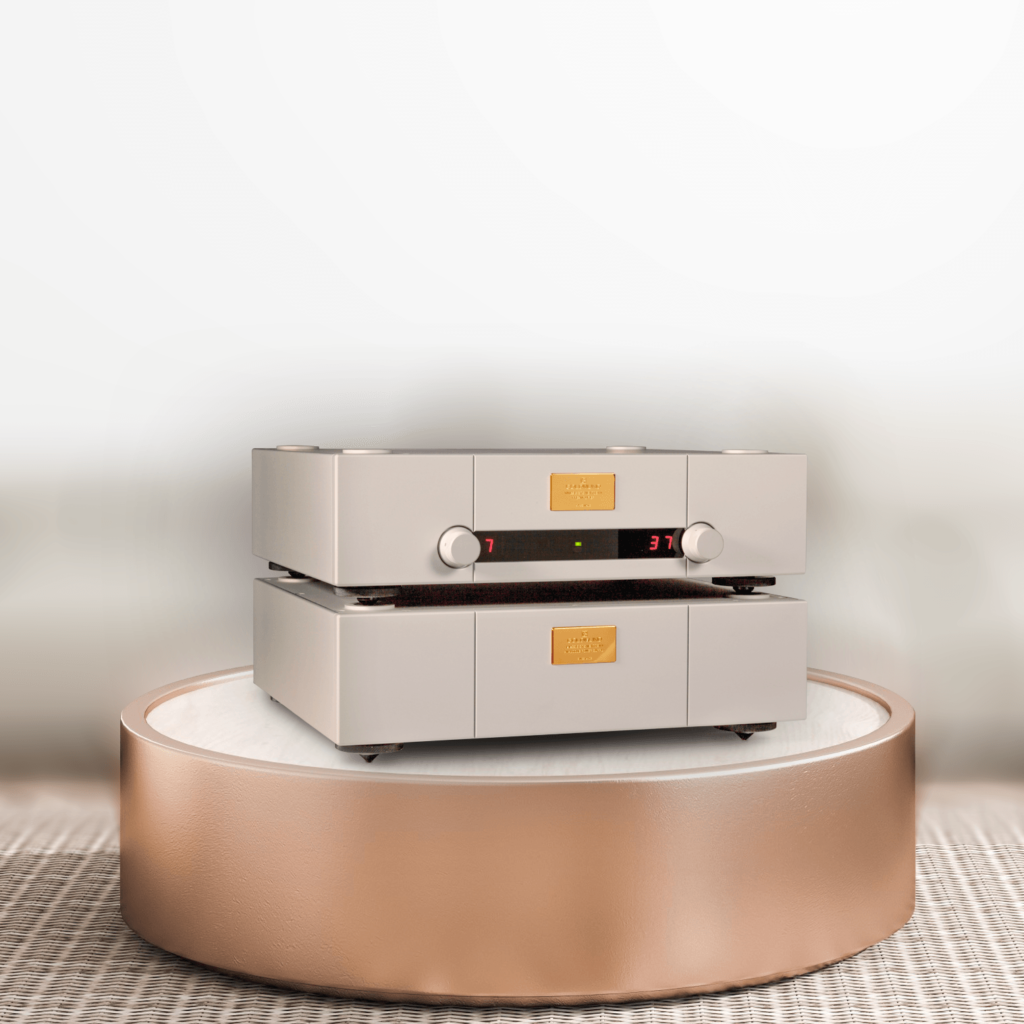

Goldmund Mimesis 37S NextGen is a high-end analog stereo preamplifier. Its ability to reduce noise and distortion using multiple parallel preamplifier stages is purely incredible. A Full Dual-Mono construction with processor-driven linked attenuators, the Mimesis 37S NextGen uses a separate power supply unit for optimum noise reduction and 2 successive stages of power regulation with 4 separate circuits.
AUDIO CIRCUIT QUALITY
The Mimesis 37S NextGen is delivered with 7 inputs – 5 unbalanced and 2 balanced analog inputs – and 3 outputs – 1 unbalanced tape loop and 1 balanced and 1 unbalanced analog output per channel. It is also protected against ground loops and AC line drops or interruption will trigger and automatic muting. The Mimesis 37S NextGen is a reference in analog preamplification and will remain without equivalent in audio circuit quality and sound for the years to come.
STEREO PREAMPLIFICATION
Goldmund Mimesis 37S NextGen is a high-end analog stereo preamplifier. Its ability to reduce noise and distortion using multiple parallel preamplifier stages is purely incredible. A Full Dual-Mono construction with processor-driven linked attenuators, the Mimesis 37S NextGen uses a separate power supply unit for optimum noise reduction and 2 successive stages of power regulation with 4 separate circuits.
AUDIO CIRCUIT QUALITY
The Mimesis 37S NextGen is delivered with 7 inputs – 5 unbalanced and 2 balanced analog inputs – and 3 outputs – 1 unbalanced tape loop and 1 balanced and 1 unbalanced analog output per channel. It is also protected against ground loops and AC line drops or interruption will trigger and automatic muting. The Mimesis 37S NextGen is a reference in analog preamplification and will remain without equivalent in audio circuit quality and sound for the years to come.
SPECIFICATIONS
INPUTS
- Input impedance: 39 kOhms.
- Maximum input level (balanced): 9.6 Vrms.
- Maximum input level (unbalanced): 4.8 Vrms.
- Separated input level adjustment for each of the 7 line inputs: -12 to +12 dB.
OUTPUTS
- Output impedance: 50 Ohms.
- Maximum output level (balanced): 19.2 Vrms.
- Maximum output level (unbalanced): 9.6 Vrms.
FREQUENCY RESPONSE
These values for any level to maximum output level.
- +/- 0 dB, 20 – 20 kHz.
- +/- 3 dB, 0.2 – 900 kHz.
GROUP DELAY
- Propagation delay <300 ns stable with frequency from DC to 200 kHz.
SPEED
- Slew rate of the amplification stages: 200 V/us.
- Rise time: < 400 ns.
CROSSTALK
- Separation: > 105 dB between channels (20 Hz – 20 kHz).
DISTORTION
With 1 Vrms output level, 80 KHz measurement bandwidth, 600 ohms termination impedance.
- THD unbalanced input to unbalanced output: 0.002 % flat with frequency.
- THD balanced input to balanced out: 0.001 % flat with frequency.
- IMD unbalanced input to unbalanced output: 0.002 %.
- IMD balanced input to balanced out: 0.001 %.
NOISE
- Signal-to-noise ratio on line input: > 120 dB (0.01 Hz – 10 Mhz).
- Weighted ASA A: > 130 dB.
OPERATING TEMPERATURE
- Room temperature: -30 to +40 degrees Celsius.
- Internal temperature: +45 to +70 degrees Celsius.
POWER
- Nominal line voltage: 115 or 230 V.
- Input voltage range: +/-15 %.
- Maximum power consumption: 70 W.
GROUNDING
- Separated ground and earth signal.
SAFETY FEATURES
- Automatic switching to MUTING if the AC line drops or is interrupted.
- Automatic protection against tape loops.
FRONT PANEL
- VOLUME control.
- BALANCE control.
REAR PANEL
- Power connector.
- Output connectors RCA (right and left).
- Output connectors RCA (right and left) for Tape 1 and Tape 2.
- Input connectors RCA (right and left) for Tape and line inputs.
POWER SUPPLY CONTROLS
- Power cord socket (3 lugs).
- Main fuse (2.5 A slow-blow).
- Voltage selector 115/230 V.
- Earthing post (yellow-green).
SIZE & WEIGHT
PREAMPLIFIER:
- 44 W x 13.5 H x 40 D (cm) – 17.3 W x 5.12 H x 15.75 D (inch) without power cord.
- 9 kg.
- 44 W x 13.5 H x 38.5 D (cm) – 17.3 W x 5.12 H x 14.96 D (inch), without power cord.
- 12 kg.
WARRANTY
- 3 years, parts and labor (except drivers).
