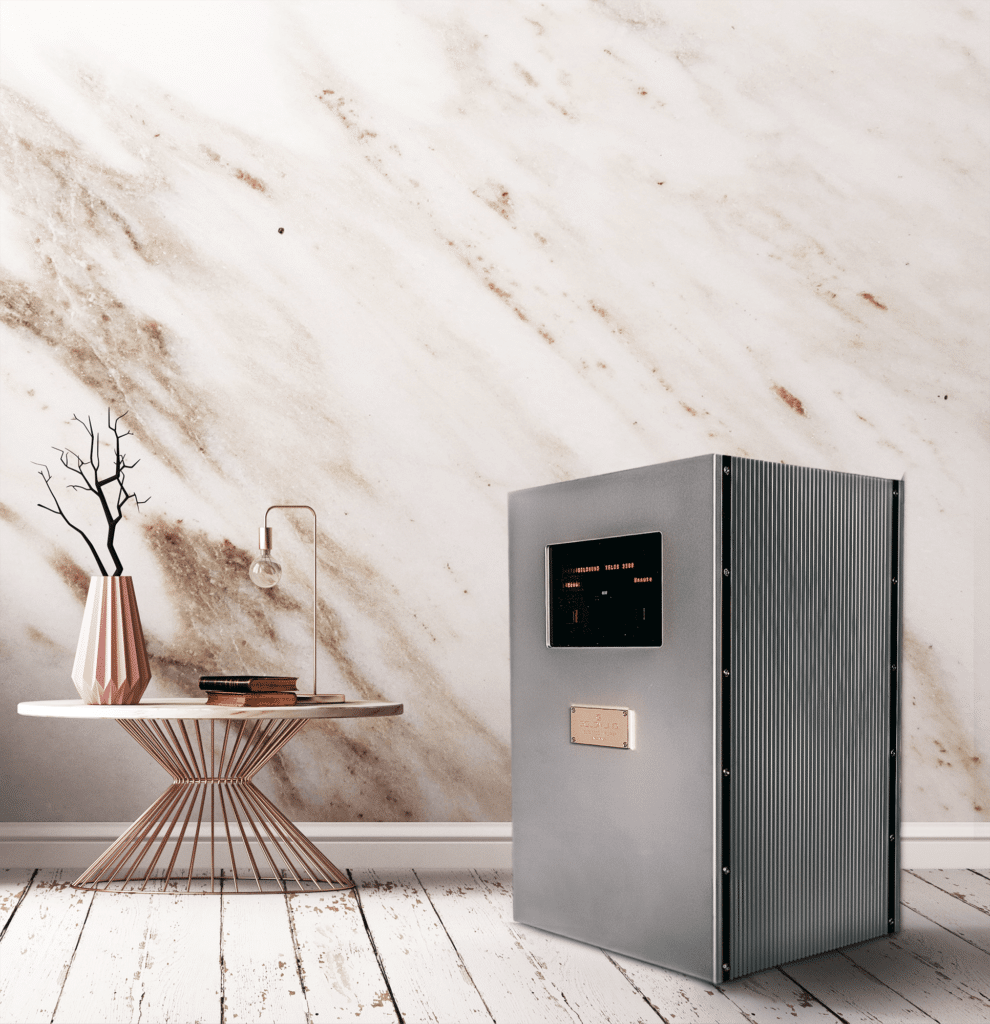

TELOS 3300 NEXTGEN
Mono Power Amplifier
DIRECTLY DERIVED FROM THE MAGNIFICENT TELOS 5500 NEXTGEN, GOLDMUND PROUDLY PRESENTS TELOS 3300 NEXTGEN WITH MAJOR IMPROVEMENTS IN AUDIO AMPLIFICATION.
SPECIFICATIONS
OUTPUT POWER
- Maximum power (IEC60065): 700 Wrms on 8 Ω / 1 % THD.
DAMPING FACTOR
- 350 at 1 kHz / 8 Ω.
OUTPUT NOISE FLOOR
- Analog input terminated with RCA Shorting Caps, unloaded: < 5 μV from 20 Hz to 20 kHz.
GAIN
- 35 dB, +/- 9 dB (adjustable in steps of 3 dB for each input).
DISTORTION
- IMD (SMPTE), unloaded: < 0.01 %.
- THD+N, unloaded: < 0.005 % from 20 Hz to 20 kHz at 30 Vrms output.
REAR PANEL
- Power cord: universal socket 3 lugs, 16 A.
- Main fuses (see last page for more details).
- AC black GND binding post (with bridge connection).
- Green-yellow AC earth binding post (with bridge connection).
- 2 x output binding posts (red & black).
- 1 x output speaker Lemo 4B type connector.
- Analog input RCA unbalanced connector.
- Analog input XLR balanced connector.
- Digital input and output RCA connectors.
- RS232 command connector.
INPUT
Max level before clipping:
- Analog input: 2 Vrms.
- Digital input: 0 dBFS.
OUTPUT
Max level before clipping:
- 1 % THD, unloaded: 300 Vpp.
RATED POWER CONSUMPTION
- IEC 60065, 1/8 Output Power at 8 Ω: 500 W.
POWER SUPPLY
- Nominal line voltage: 115 V or 230 V.
- Input voltage range: +/- 15 %.
DYNAMIC RANGE
- 22 kHz measurement bandwidth (flat), true RMS unloaded: 116 dB.
DIMENSIONS & WEIGHT
- 39 W x 48 D x 69 H (cm).
- 165 kg.
WARRANTY
- 3 years parts and labor.
