TELOS 280
Stereo Power Amplifier
Previous
Next

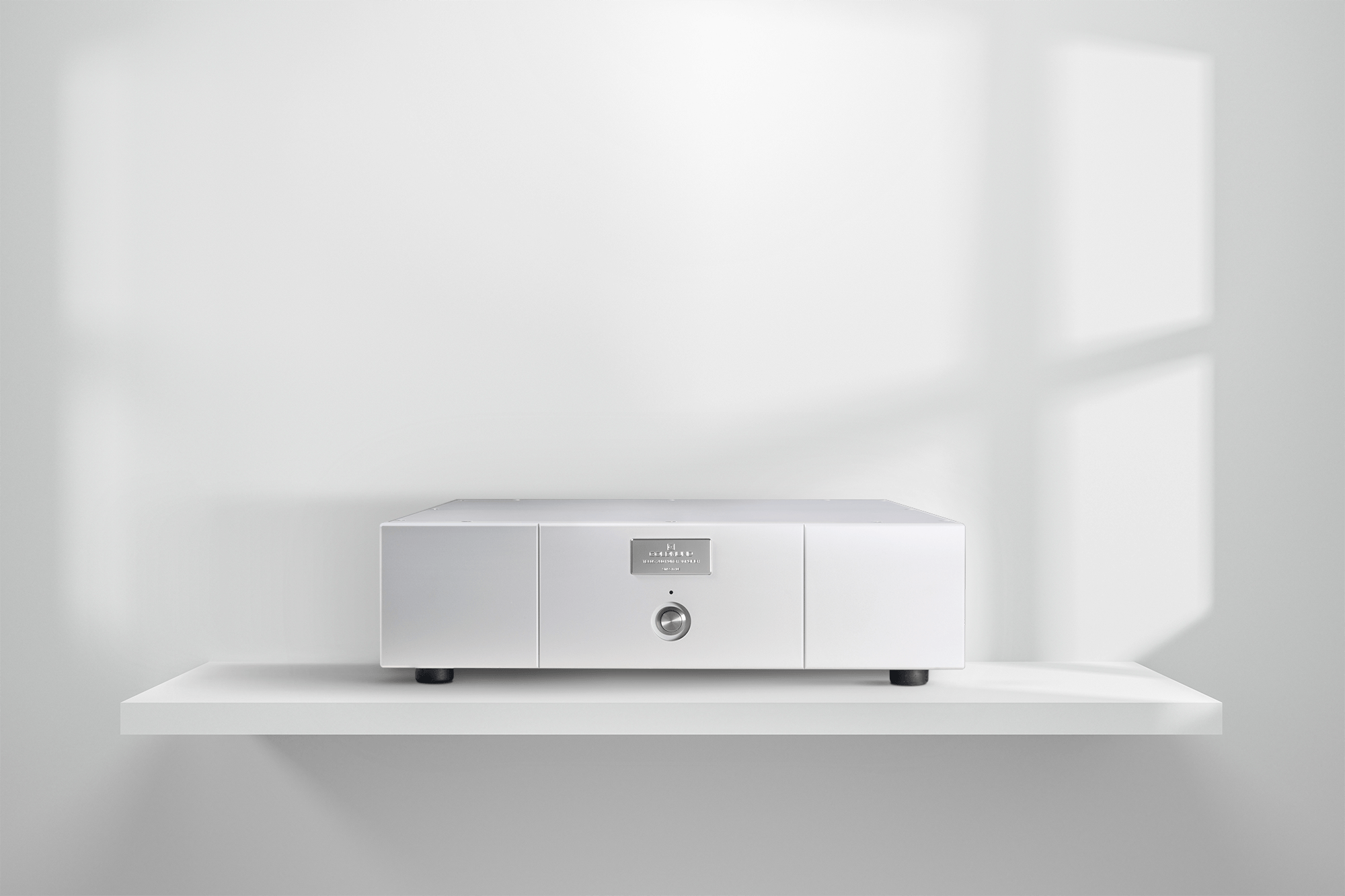

The Goldmund Telos 280 is a stereo analog power amplifier producing 320W of pure power for the best musical enjoyment. Continuing the excellence and legacy of the Telos line, its design is inspired by its illustrious predecessor the Mimesis 28.
SPECIFICATIONS
OUTPUT POWER
- Maximum power (IEC60065): 2 x 215 Wrms on 8 Ω / 1 % THD
DAMPING FACTOR
- 173 at 1kHz / 8 Ω.
GAIN
- 35 dB.
DISTORTION
- With 20 Vrms output level = IMD < 0,04 %.
- THD+N, unloaded: < 0.04 % from 20 Hz to 20 kHz at 20 Vrms output.
MAX POWER CONSUMPTION
- IEC 60065 at 8 Ω /1 % THD: 300 W.
INPUT
- RCA Analog Input left & right.
- XLR Analog Input left & right.
OUTPUT
- 2 x pairs binding post 5-ways connectors.
OUTPUT LEVEL
- Maximum voltage before clipping: 153 Vpp.

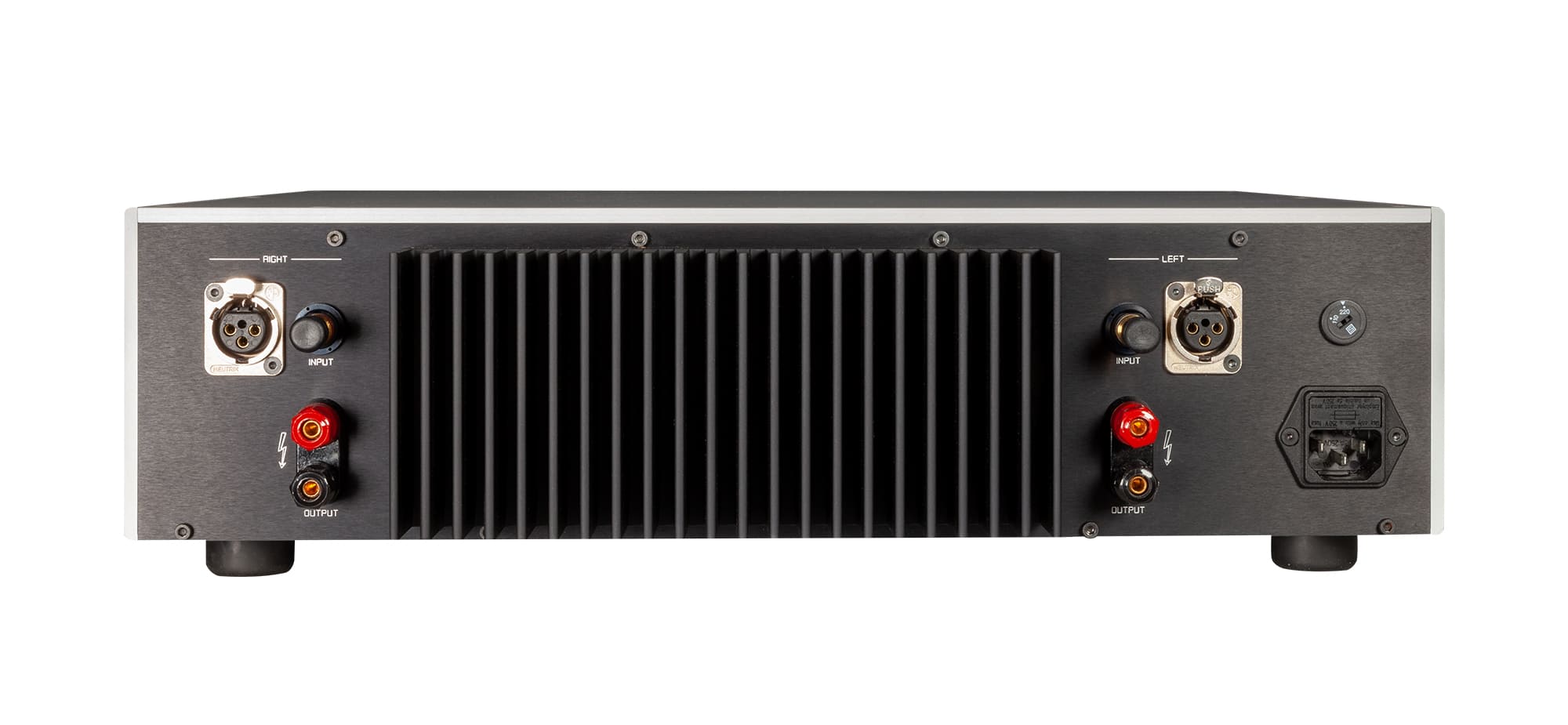

REAR PANEL
- 2 x output binding posts (left & right).
- 2 x RCA Analog Input (left & right).
- 2 x XLR Analog Input (left & right).
- Input Voltage selector.
RATED POWER CONSUMPTION
- IEC 60065, 1/8 Output Power at 8 Ω: 70 W.
POWER SUPPLY
- Nominal line voltage: 115 V or 230 V.
- Input voltage range: +/- 15 %.
DIMENSIONS & WEIGHT
- 44 W x 40.5 D x 13 H (cm), 15 kg.
WARRANTY
- 3 years parts and labor.
