METIS 7

Integrated Stereo Amplifier

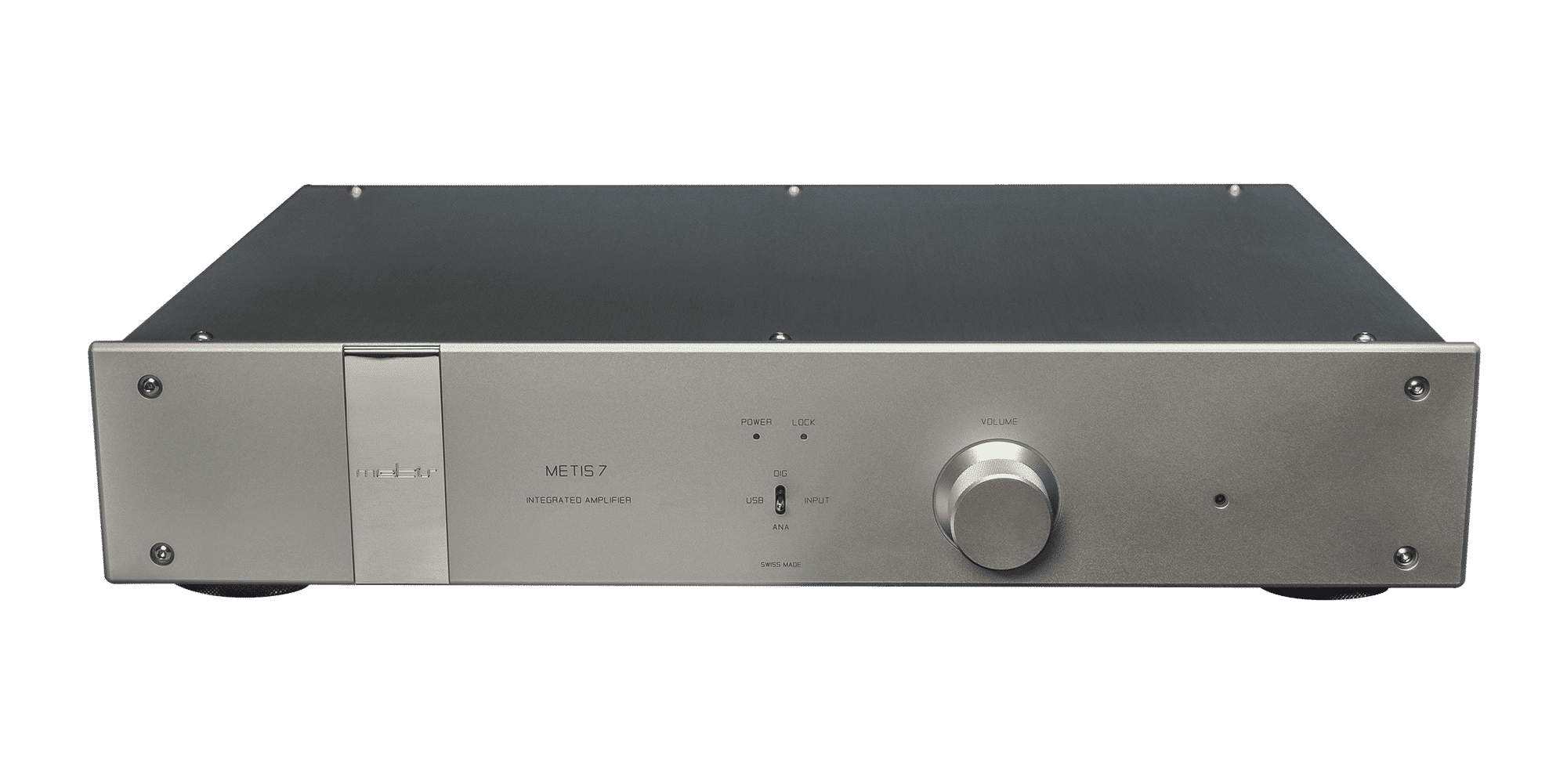

Metis 7 Hifi stereo amplifier
The Metis 7 is an entry line integrated amplifier. Its Telos amplification technology provides outstanding dynamics and exerts a strong control over the drivers for an extremely neat and detailed sound. It is the ideal companion of a simple stereo system and provides the necessary power to drive any speaker. Its size is compact, and the front panel includes a volume control and an input selector switch, the IR receiver for the remote control, as well as led indicators for power and digital lock.
POWER SUPPLY

Nominal line voltage: 117 or 234 V (switchable).
Fuse 8A for 110V and 220V.
Input voltage range: +/- 10 %.



Rated Power Consumption

IEC 60065, 1/8 Output Power at 8 Ω: 240 W.



Max Power Consumption

IEC 60065 at 8 Ω /1% THD: 700 W.



OUTPUT POWER

FPP at 8 Ω: 190 W.
IEC 60065 at 8 Ω / 1 % THD+N: 2 x 175 W.



REMOTE CONTROL

2 x output binding posts Left & Right.
ON/OFF power switch key.
Voltage input selector.
RS232 Command connector.

INPUTS

USB device:
– Audio Class 2.0 (no driver required on Mac OS X as of v.10.6.4 nor on Linux, driver required only for Windows).
– Sample rate up to 384 kHz/Bit depth up to 32
– DSD over PCM capabilities.

1 x Toslink Optical or Digital S/PDIF coaxial RCA 75 Ohms.
1 x Analog RCA (Left & Right).



FRONT PANEL

Knob for digital volume control.
Input switch selection.
Power and lock Led.



REAR PANEL

2 x output binding posts (left & right).
ON/OFF power switch key.
Voltage input selector.
RS232 Command connector.



DISTORTION

THD+N, unloaded: < 0.08 % from 20 Hz to 20 kHz at 30 VRMS output.
IMD (SMPTE), unloaded: < 0.02 % before clipping.

OUTPUT NOISE FLOOR

Inputs terminated with RCA Shorting Caps, unloaded: < 10 µV from 20 Hz to 20 kHz.



DYNAMIC RANGE

22 kHz measurement bandwidth (flat): > 100 dB.



GAIN

35 dB.



DAMPING FACTOR

220 at 1 kHz, 8 Ω.



SIZE & WEIGHT

44 W x 35.2 D x 10.6 H (cm).
10 kg.



WARRANTY

3 years, parts and labor.
