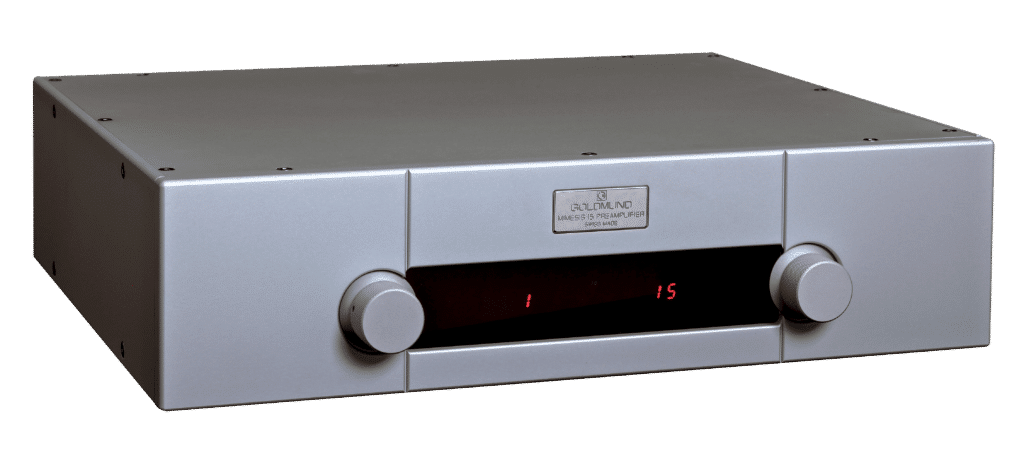

MIMESIS 15

Processor
Previous
Next
PRECISION AND TRANSPARENCY ON 16 SEPARATELY FILTERED CHANNELS FOR AN UTMOST SURROUND SOUND REALISM.

SPECIFICATIONS

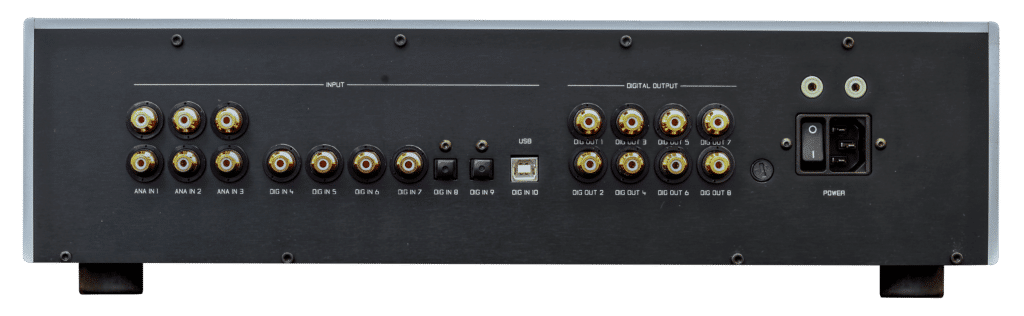

INPUTS
  • 3 analog 2-channel inputs.
  • 4 digital inputs RCA (up to 96 kHz).
  • 2 digital inputs optical toslink (up to 96 kHz).
  • 1 digital input USB (up to 48 kHz PCM Stereo only).
  • The audio format supported are:
    PCM 44.1 kHz to 96 kHz
    Dolby Digital
    DTS
    DTS-CD
    AAC
DIGITAL OUPUT
  • 8 digital RCA S/PDIF outputs.
  • Front panel and remote-control adjustable level control with 65 dB range and 0.05 dB accuracy in the 0 to -34 dB range.
REMOTE CONTROL
  • RC5 Standard remote system compatible with standard programmable remote control transmitter (codes available on request).
  • Volume and balanced control.
  • Selection of the source.
  • Remote muting and standby.
FRONT PANEL CONTROL
  • 2 knobs for input selection and volume control.
  • 2-character numeric display for input selection.
  • 2-character numeric display for volume.
  • Direct LED format, balance and function display.
POWER
  • 1 separate transformer.
  • 6 separately regulated power supplies.
  • Nominal AC line voltage: 115 V or 230 V (+/- 15 %).
  • Maximum power consumption: 8 W.
  • Fuse: 100 mA /250 V (slow-blow).
SIZE & WEIGHT
  • 44 W x 13 H x 40.5 D x (cm) – 17.3 W x 5.1 H x 15.7 D x (inch).
  • 12 kg.
WARRANTY
  • 3 years, parts and labor.
