METIS TALISMAN

Hub

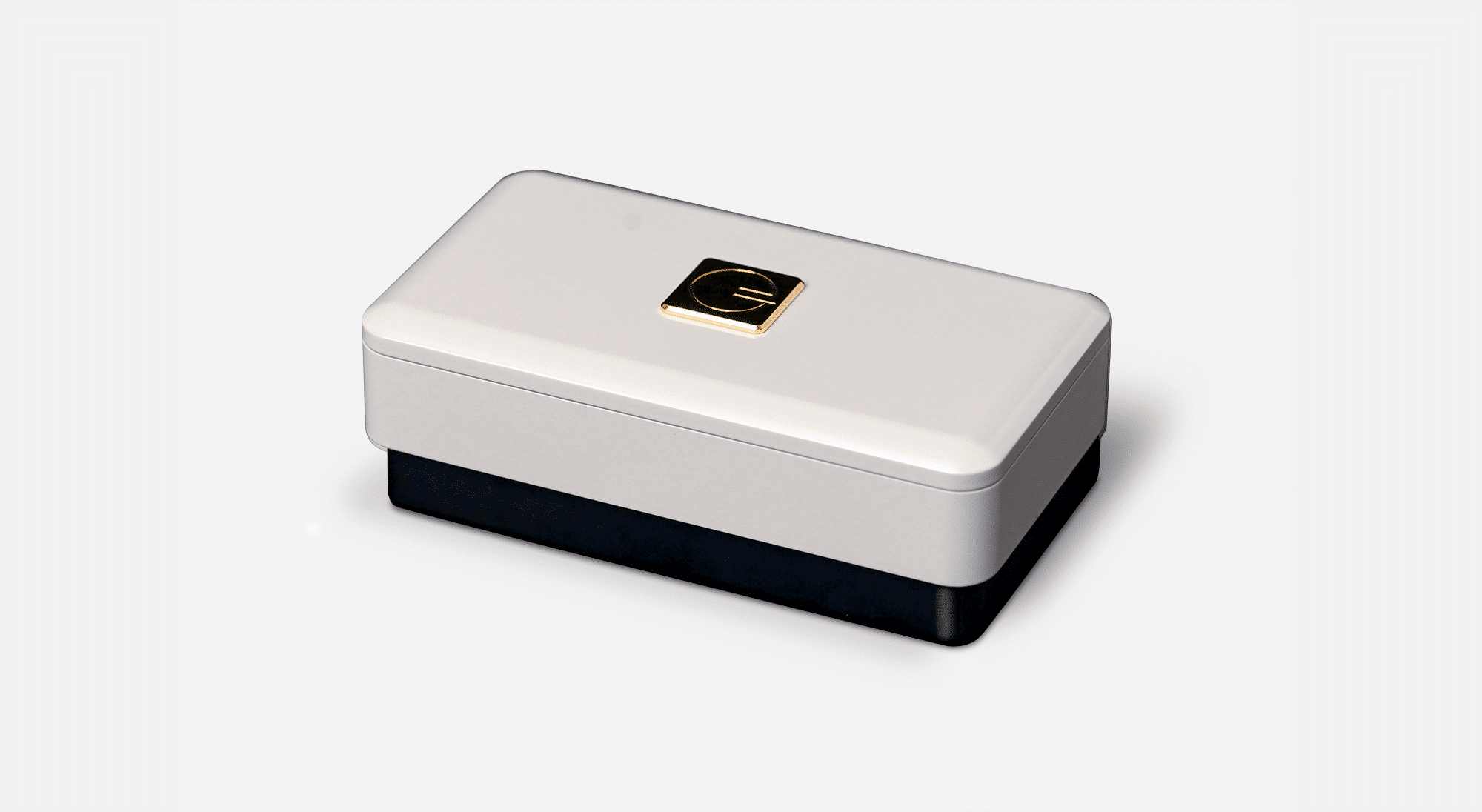

DISCREET AND ELEGANT, THE TALISMAN LOOKS MORE LIKE A JEWELRY BOX THAN TO A PIECE OF ELECTRONICS. WITH ITS USB PORT, ANALOG AND DIGITAL RCA INPUTS, IT CONNECTS ALL SOURCES, INCLUDING TV THROUGH S/PDIF. IT ALSO COMES WITH A HEADPHONE PLUG. SUITABLE FOR MONO AND STEREO.

SPECIFICATIONS

POWER
  • Nominal line voltage: 115 V or 230 V (both accepted – no selection needed).
  • Input voltage range: +/- 15 %.
  • 500 mA delayed fuse.
  • Rate power consumption: 15 W.
USER INTERFACE
  • Volume buttons (+/-).
  • Input selection button.
  • Linear LED indicator.
  • Remote control.
INPUT
3 digital inputs:
  • In1 RCA S/PDIF.
  • In2 USB Audio Class 2.0 (no driver required on Mac OS X as of v.10.6.4 nor on Linux, driver required only for Windows).
  • In3 Toslink optical.Input 2 can receive stereo audio encoded signal up to 384 kHz/Bit depth up to 32 compatible DSD over PCM.
1 analog input:
  • In4 RCA 2-channel.
OUTPUT
  • Wireless outputs 4 channels max.
  • Headphone mini-jack.
SIZE & WEIGHT
  • Hub: 18 W x 59 H x 11.6 D (cm) – 7.1 W x 23.2 H x 4.3 D (inch).
  • External power supply: 14 W x 39 H x 11 D (cm) – 5.1 W x 15.4 H x 4.3 D (inch).
  • 3 kg.
WARRANTY
  • 3 years, parts and labor.
